Xell™ System Balance

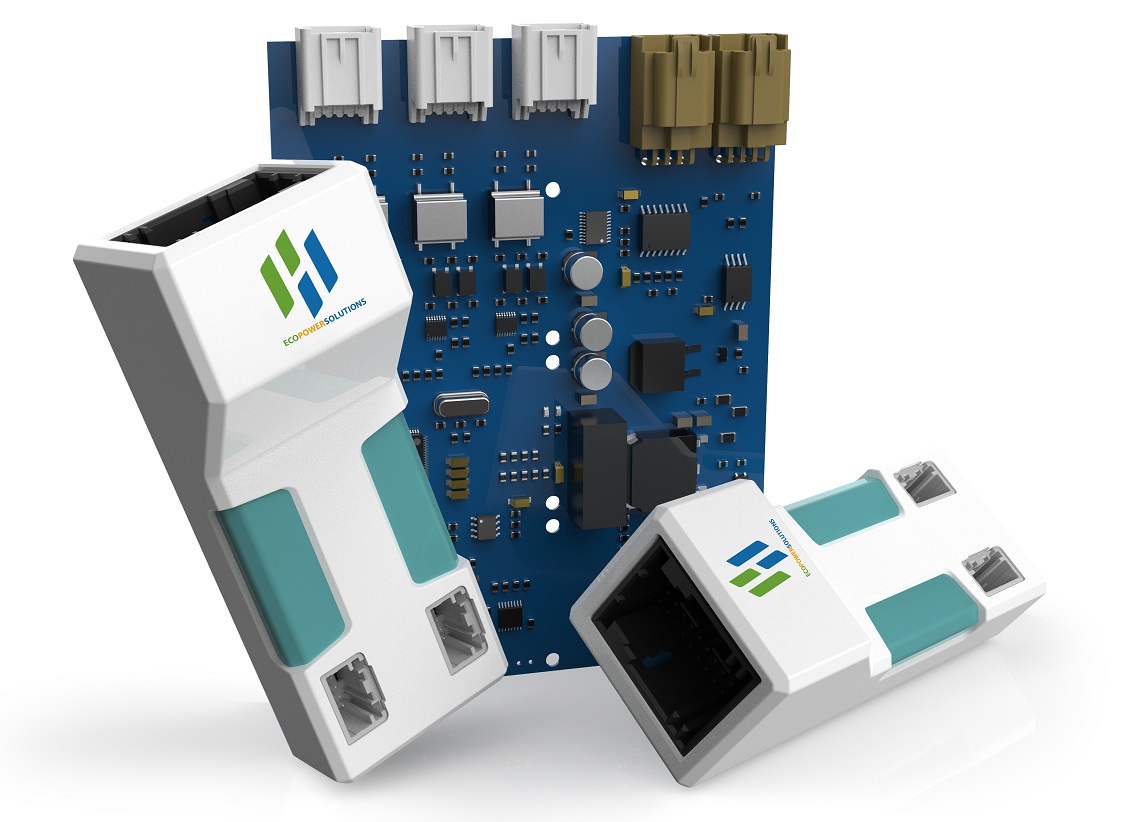

Cell Voltage Monitoring Module
- Lightweight & compactness - Optimized volume, easy integration into fuel cell systems.
- Modular Design - Customizable channels, Expandable in series up to 648 channels.
- Standard automotive connectors - Shockproof and anti-loose design.
- Meet the regulation of automotive-grade - Design in accordance with ISO 16750, CIPSR25.
- System Monitoring - Fault detection, real-time monitoring of module abnormalities.
- Safety Features - High and low supply voltage insulation.
- Power Optimization - Anti-noise design, power supply, and signal isolation.
- Energy Efficient
Specification:
|
Channel Numbers |
36 |
|
Range (Channel) |
±2.5 VDC |
|
Resolution |
12 bit (1.5 mV ) |
|
Accuracy |
±20 mV |
|
Sample Rate |
50 ms (full channels) |
|
Isolation |
1.5 kV |
|
Maximum Channels |
648 |
|
Voltage |
12 VDC |
|
Power |
<200 mW |
|
Dimensions |
110 * 35 * 35 mm |
|
Operation Temperature |
-40 °C to +85 °C |
|
Communication |
RS485 |
|
CAN 2.0B |
|
|
Standard |
AEC-Q100 qualified |
|
ISO-7637 compatible |
|
|
Accessories |
Power cable with connector |
|
Communication cable with connector |
|
|
Cell monitor cable with connector |
