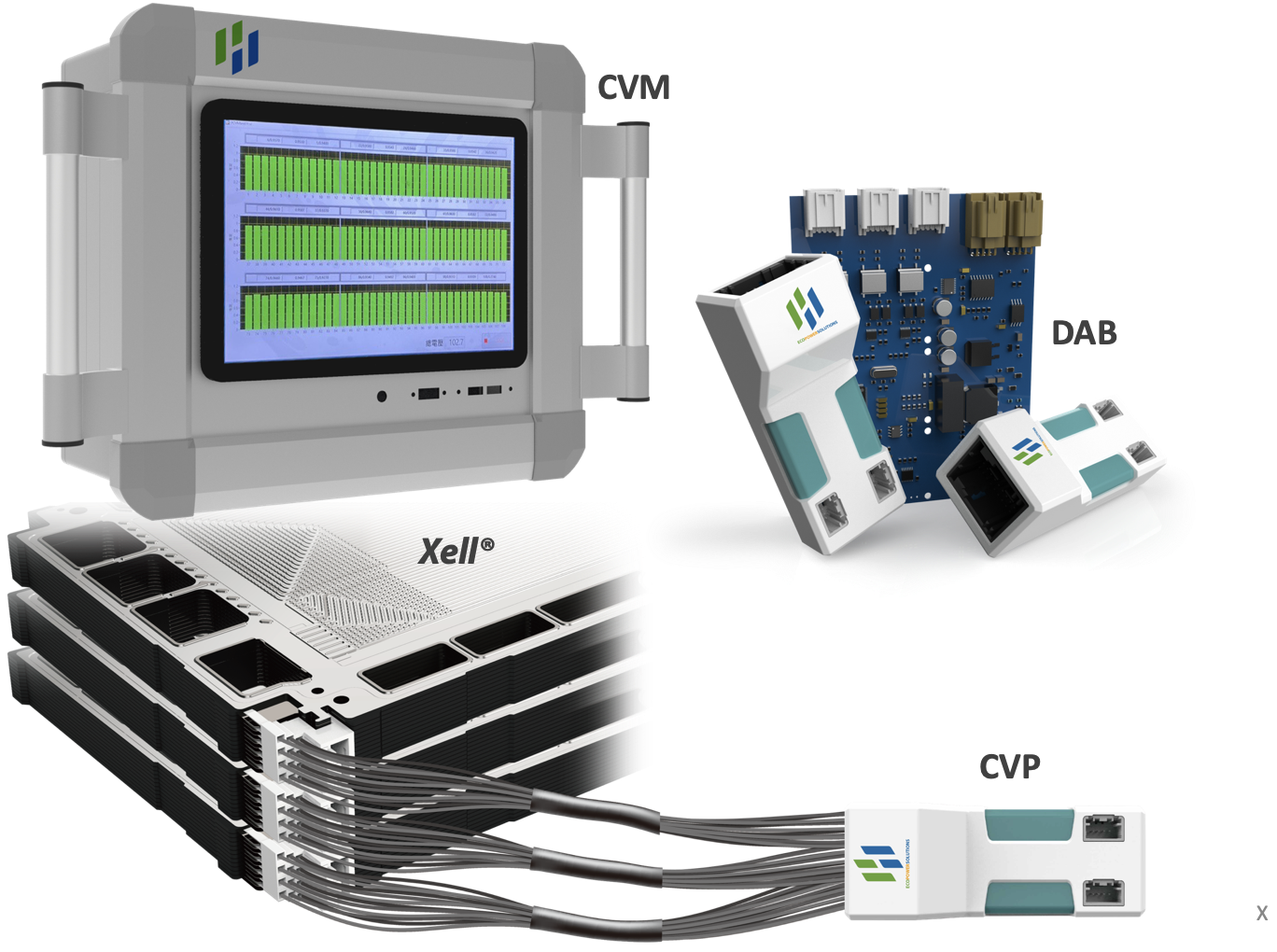

APT specifically designed the modular cell voltage monitor CVM for Xell®. The matching of the two can fully demonstrate its characteristics of flexible expansion, easy assembly and product diversification. The CVM of the Xell® Inside stack can be divided into two parts: the cell voltage pickup CVP and the voltage data analysis board DAB. A CVP can connect 3 Xell® cell modules to provide 36 channels of voltage data. A DAB can connect up to 18 groups of CVP in series, that is, sample and analyze the voltage data of 648 cells at the same time.
| 電堆功率(額定) | Xell®數量 | CVP數量 | DAB數量 |
|---|---|---|---|
| 30KW | 9 | 3 | 1 |
| 65KW | 18 | 6 | 1 |
| 75KW | 21 | 6 | 1 |
| 85KW | 24 | 8 | 1 |
| 100KW | 27 | 9 | 1 |
| 120KW | 33 | 11 | 1 |
| 140KW | 39 | 13 | 1 |
| 75KW+75KW | 42 | 14 | 1(一片二堆) |
| 85KW+85KW | 48 | 16 | 1(一片二堆) |
| 100KW+100KW | 54 | 18 | 1(一片二堆) |
| 65KW+65KW+65KW | 54 | 18 | 1(一片三堆) |
