Xell™ Inside

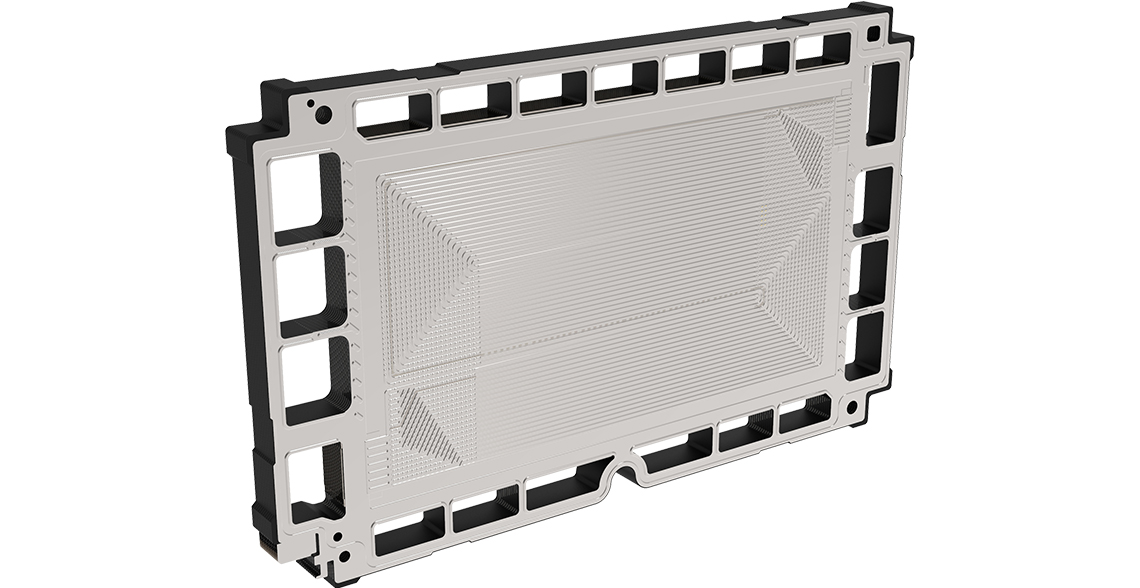

Xell™
Specification:

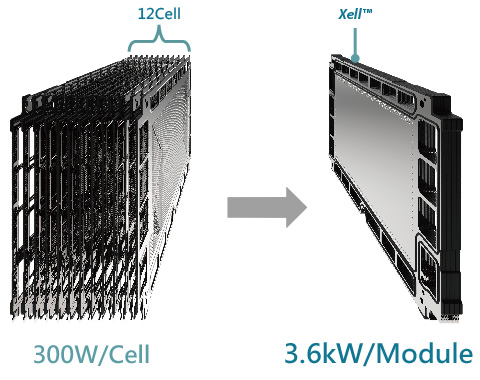

- Xell™ module is composed of twelve cells that provides power over 3.6kW.
Features:
- Xell™ could readily and easily assemble for fuel cell stacks of different powers.
- Xell™ could provide various fuel cell products to meet many different needs in the market at low cost.
- Xell™ is expandable and suitable for fuel cell stacks of the power range from 10kW to 120kW.
| Xell™ Specification | ||
| Geometry | Cell number | 12 |
| Weight (kg) | 1.64 ± 0.5% | |
| Volume (L) | 1.16 ± 0.5% | |
| Dimensions (cm3) | 32.4x20.4x1.7 | |
| Active area (cm2) | 290 | |

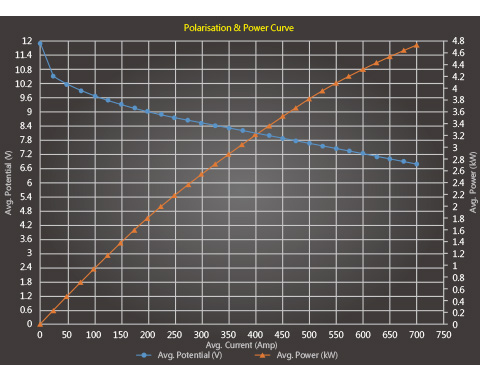

| Power | Rated power（kW@0.65V/cell） | 3.7 |
| Maximum power (kW@700A) | 4.7 | |
| Specific power (kW/kg） | 2.26 | |
| Volume power density (kW/L） | 3.50 | |
| Operating Conditions | Cathode dew point (°C） | 65 |
| Anode dew point (°C） | 65 | |
| Cathode back pressure (bar） | 2.1 | |
| Anode pressure (bar） | 2.5 | |
| Coolant inlet temperature (°C） | 65 | |
Features:
- With standardized inlet/outlet manifold plates, current collector plates, seals, and fasteners, Xell™ can be assembled for stacks of different power, which is used in multiple applications and scenarios.
- Xell™ has a complete supporting of the balance of stack (BOS) components, including manifold plates, end plates, current collector plates, fasteners, seals, cell voltage monitoring modules, etc. All BOSs are designed for Xell ™, which can save time for customers in developing their own stack.
