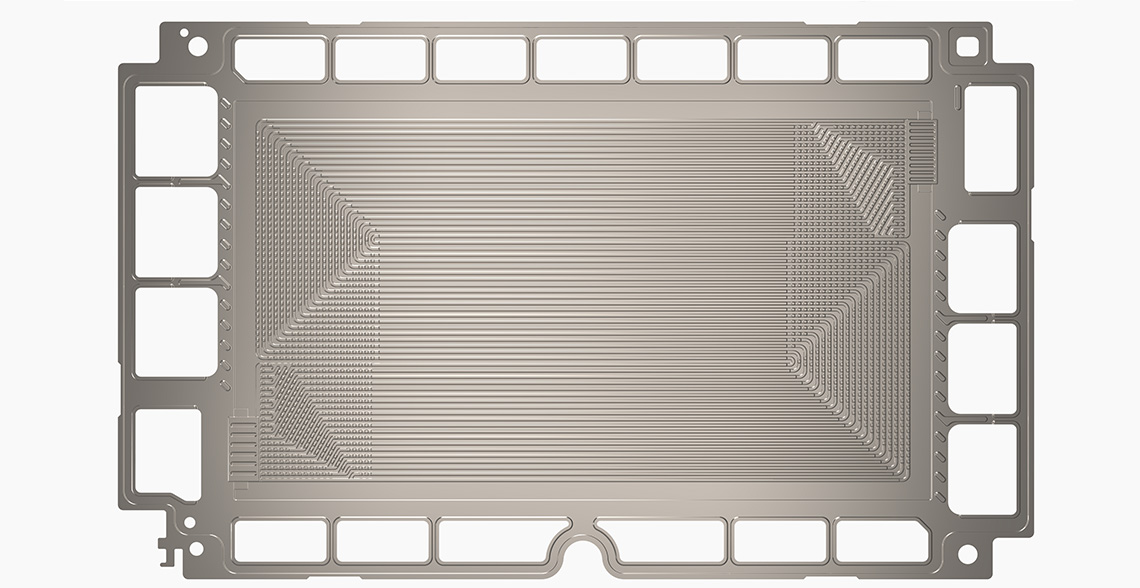

Xell™ Stack Balance

Specification:

1. SUS316L, Uncoated
2. SUS316L,  Graphitic-Like Carbon (GLC) Coated
3. SUS316L,  Titanium Nitride (TiN) Coated

* Sheet Thickness: 0.1mm

* Flow field Area: 300cm²

* Appearance Area: 600cm²

Features:

• Option 2 and 3, corrosion current density <1.0µA/cm², interfacial contact resistance <10mΩ-cm².

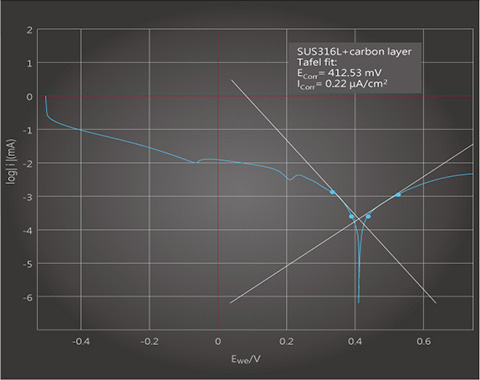

• Corrosion current test conditions: 80°C, pH3, H₂SO₄, N₂ purge

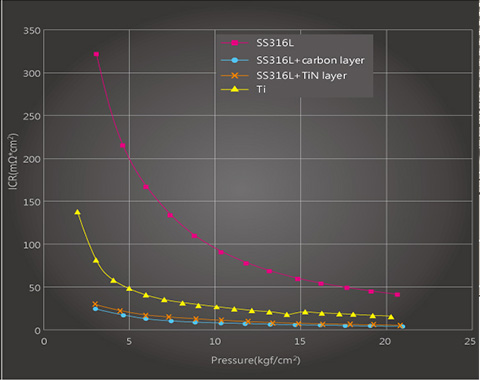

• Interfacial contact resistance test conditions: @ 14 bar
