Xell™ Stack Balance

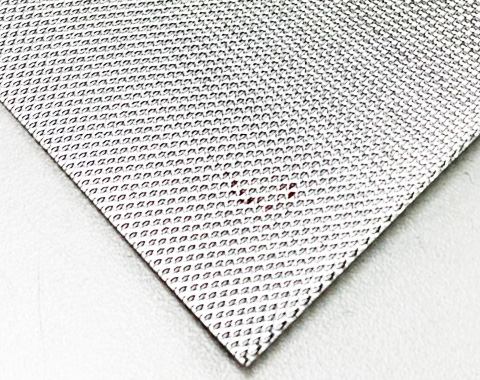

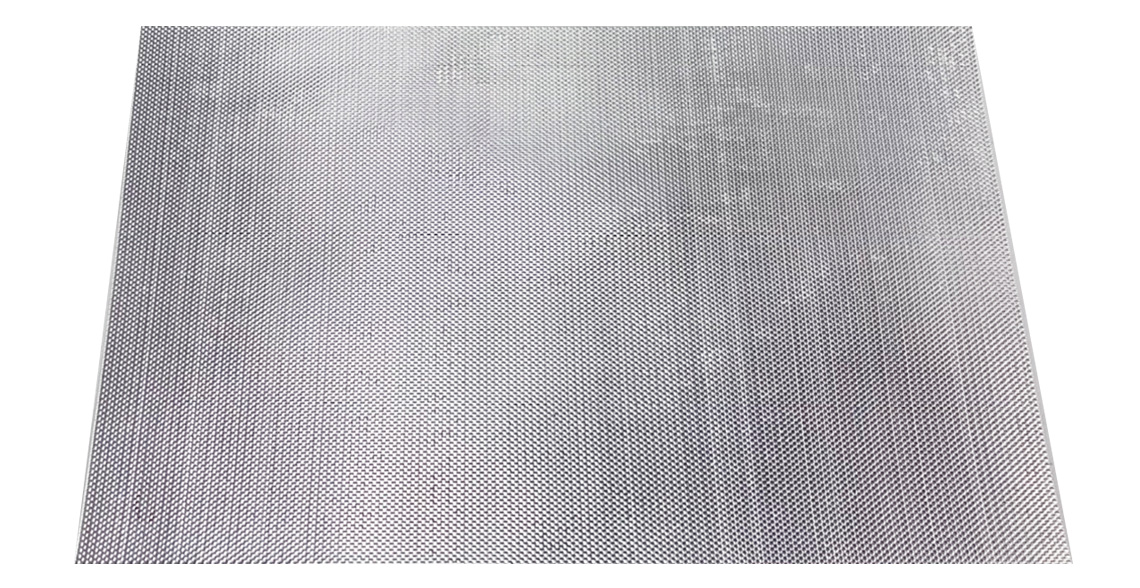

Micromesh

Model: AX00301

Price : Start From ¥100/piece(Uncoated)

       Start From ¥180/piece(Coated)
► Purchase : Info@alliedpower.tech

Specification:

  1. SUS316L, Uncoated
  2. SUS316L,  Graphitic-Like Carbon (GLC) Coated

* Sheet Thickness: 0.1mm

* Micromesh Standing Height: 0.4mm

* Appearance Area: 300cm2

* Porousity > 80%

Features:

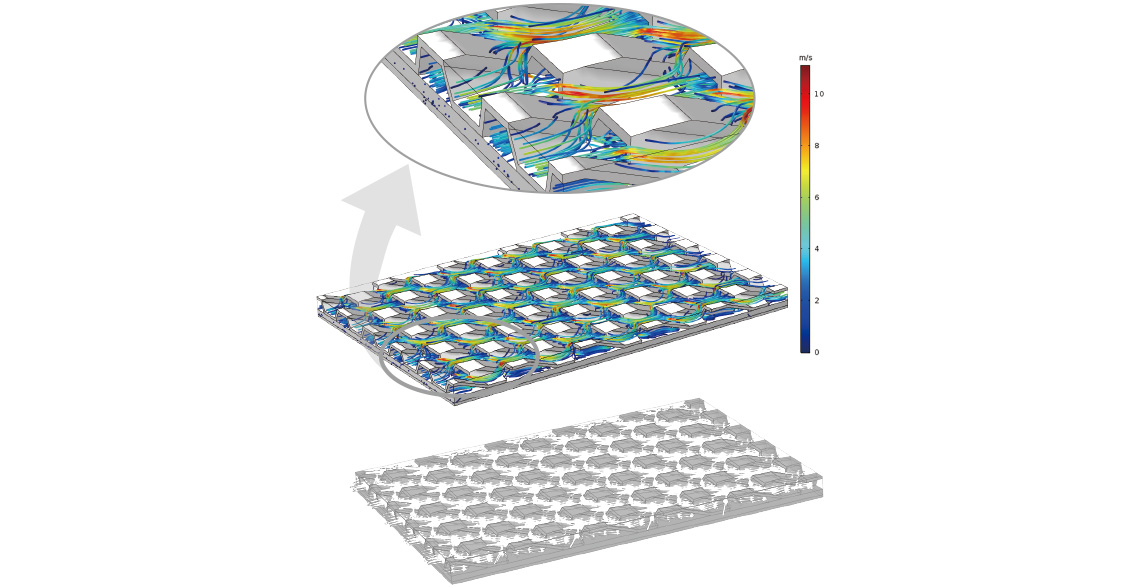

  • Uniformly distributes the cathode reaction gas and effectively removes the accumulated water in the cathode.

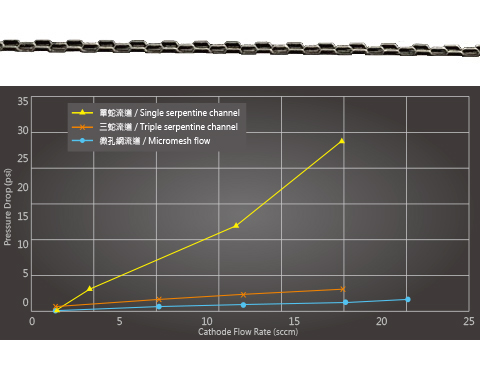

  • Greatly reduces the pressure drop as compared with the traditional serpentine flow channels.
