Xell™ System Balance

Function:

• It is installed between the anode tail gas returning to the anode hydrogen supply circuit. In combination with the liquid-gas separator, it effectively separates the moisture/impurities in the anode tail gas, and sends the dry hydrogen back to the gas supply circuit.



Feature:

• Special double-lip seal design effectively provides a gastight environment for hydrogen circulation.

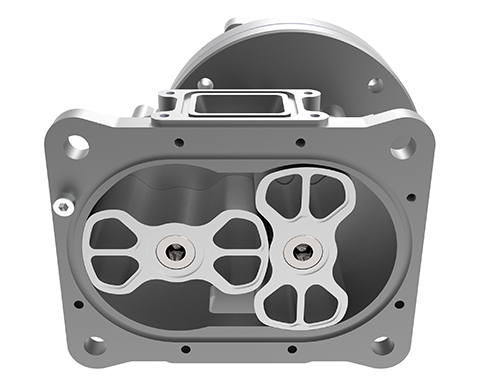

• Special coating on the blade surface provides high-performance lubrication conditions.

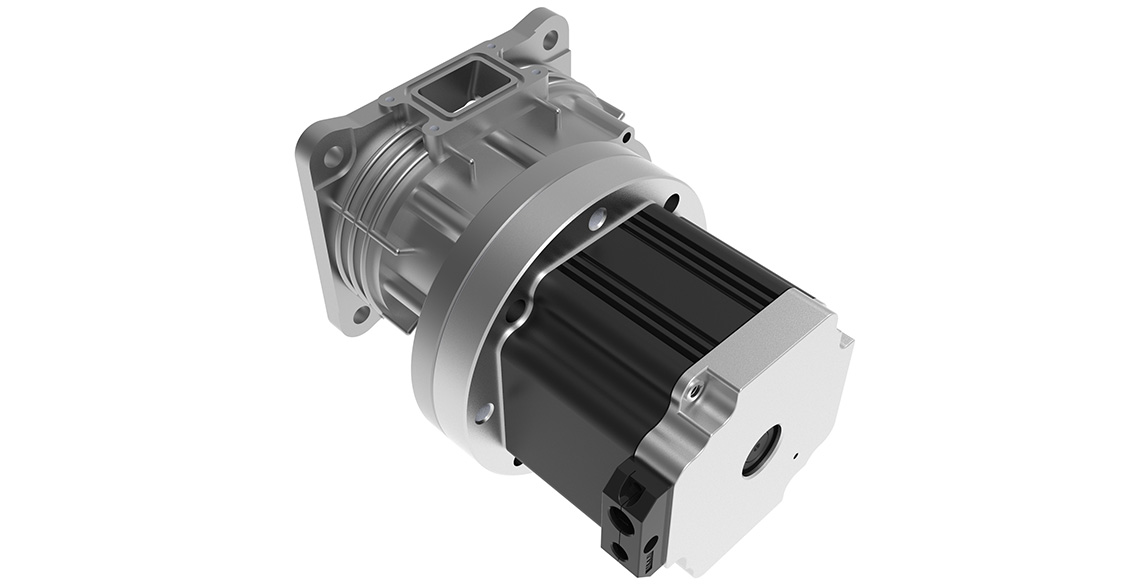

• Integrated design of the main body of the hydrogen circulation pump and the stack endplate improves the heat dissipation performance of the motor and successfully achieves a more compact system size.
