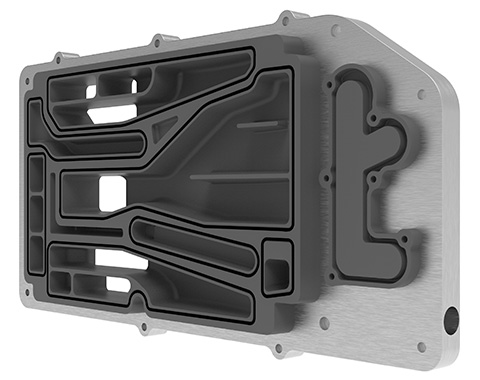

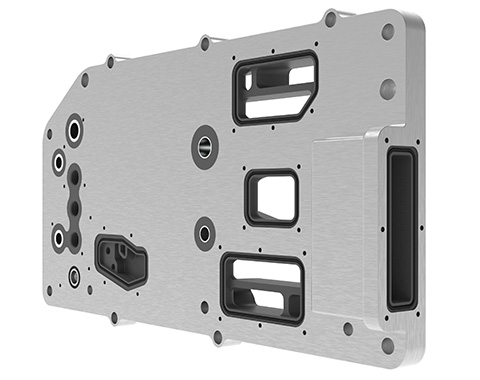

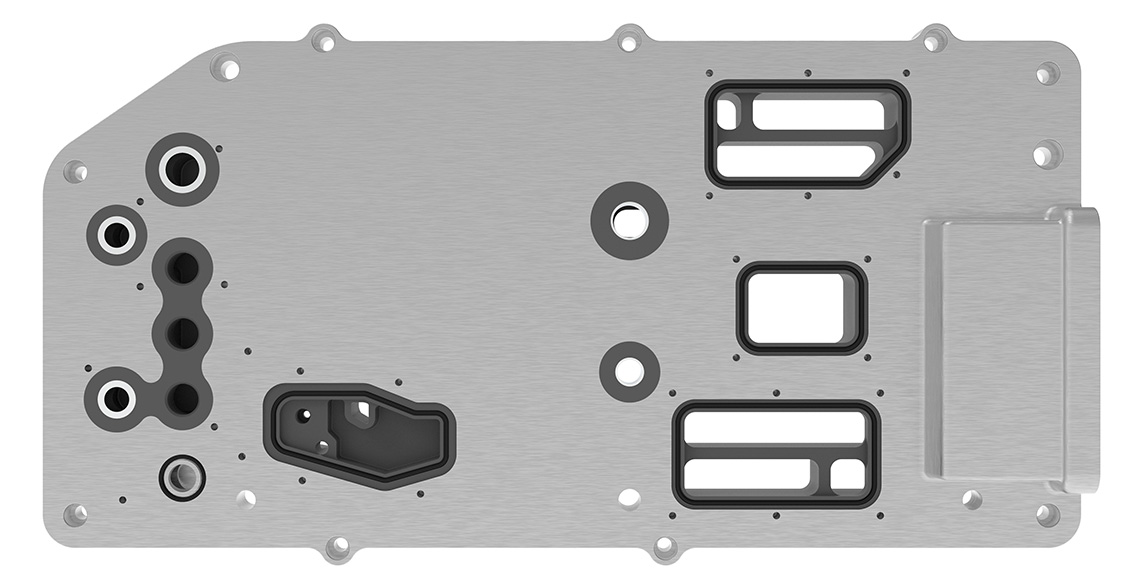

Xell™ Stack Balance

Specification:

• Xell™ exclusive parts for 120kW stack
• Material: Die-cast aluminum structure and PA9T lining

Functions and Features:

• The integrated design of the manifold (guide of air, hydrogen, coolant) and the front endplate that bears the stack assembly pressure has the comprehensive functions of pressure bearing, flow guide, and heat dispassion. It also greatly reduces the total volume of the fuel cell stack.
• The high thermal conductivity of die-cast aluminum enhances the heat spread of the fuel cell stack.
• The inner lining made of automobile-specific modified plastic PA9T  is highly resistant to chemicals and thermal impact.
